SMD · BEXLIGHT

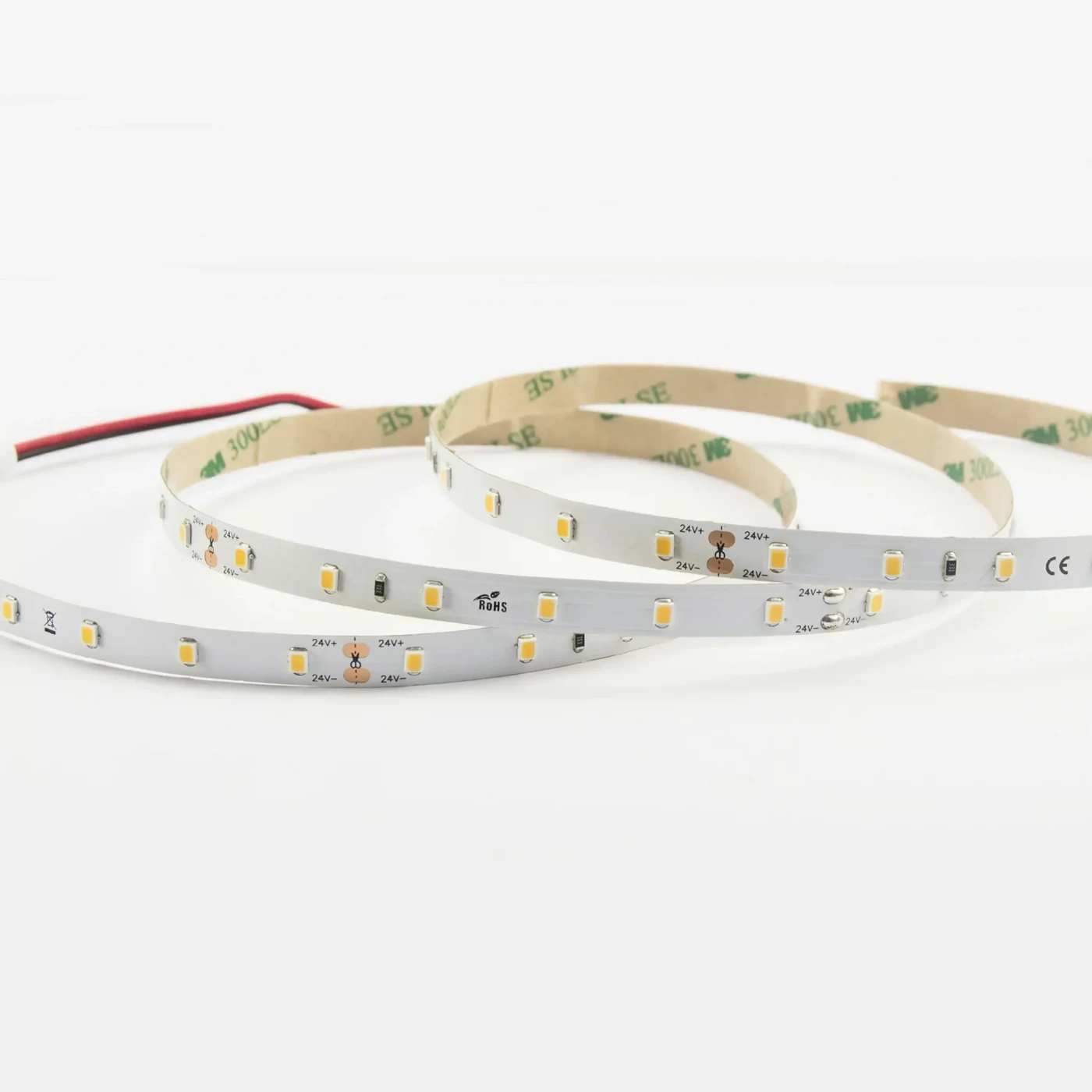

2835 CCT LED Strip
Model SR005-60P2835IP20
An SMD LED strip for task, accent and display lighting. Choose the white-light or colour configuration and check its fit in your selected profile.
- Supply voltage
- 24V
- Dimensions
- 8*5000mm
- Cut interval
- 6leds/100mm
- Protection
- IP20
- Colour temperature options
- 1900, 2300, 2700-6500
- CRI options
- 80Ra, 90Ra, 95Ra
For fixture development, project supply and repeat B2B orders. Include the quantity and intended configuration in your enquiry.
Specify the light and the control together.
For colour-changing or adjustable-white LED strips, the strip, controller, power supply and user controls form one system. Confirm the required channel arrangement and the colour behaviour at the fixture before choosing an equivalent.
Plan the complete lighting assembly.
Coordinate this model with the selected profile, diffuser, driver, sensors and quick-connect harness. Discuss Pre-Cut Custom Lengths and Custom Assembly & Kitting against the drawings; a catalogue strip alone is not a ready-to-install kit.
MODEL DATA
The details
that define the model.
Match the selected configuration to your order and fixture drawing. Options and catalogue ranges describe available configurations rather than simultaneous ratings.
Model reference
SR005-60P2835IP20
| Parameter | Value / options |
|---|---|
| Luminous output | 950 lm/m |
| Power per metre | 9.6 W/m |
| LEDs per metre | To confirm |
| Supply voltage | 24V |
| Dimensions | 8*5000mm |
| Cut interval | 6leds/100mm |
| Minimum bend diameter | >60mm |
| Copper foil | 2OZ |
| Protection | IP20 |
| Colour temperature options | 1900, 2300, 2700-6500 |
| CRI options | 80Ra, 90Ra, 95Ra |
| LED type | 2835 |
Configuration values requiring confirmation
LEDs/m: title 60; source field <60.
Full catalogue record
Retained for reference; confirm options for the supplied configuration.
| Power(W/m) | 4.9-9.6 |
|---|---|
| Voltage | 24V |
| Lumen output | 600-999 |
| CCT | 1900, 2300, 2700-6500 |
| CRI | 80Ra, 90Ra, 95Ra |
| LED Type | 2835 |
| LEDs/m | <60 |
| Dimension | 8*5000mm |
| Cut unit | 6leds/100mm |
| Bend Diameter | >60mm |
| Copper Foil | 2OZ |
| IP Rating | IP20 |
| Warranty | 3-5 years |
Check the fit.
Approve the result.
Use the model information alongside your fixture and installation requirements. The sample should answer the questions that a catalogue image cannot.
Control behaviour
Agree the control interface, dimming range and required white-light behaviour. Check transitions and low-level operation on the chosen controller.
Assembly repeatability
Record the strip reference, cable allocation, driver, controller and sample settings together so the next batch reproduces the approved assembly.
Plan this source
in the right detail.
The adjustable-white configuration makes control channels and colour settings part of the selection. Match the exact wiring and controller before sample approval. These are application planning routes, subject to configuration and sample review.
Tunable White CCT Shelving
Assess clothes, shoes and bag materials under the intended viewing conditions, with the chosen driver and control.
View the solution →
Headboard & Floating Bed Accent Lights
Plan the ambient effect around seated and sleeping eye positions, with switches and service points within reach.
View the solution →TECHNICAL SUPPORT
Put the right information
behind the order.
Need a model datasheet, dimensional drawing or wiring information? Send the model reference and the configuration you are considering so the appropriate documents can be identified.
For a quotation, include the application, quantity and unit, section lengths, colour requirement, target market and any fixture drawings.
Request documents or discuss this modelFREQUENTLY ASKED QUESTIONS
Questions about SR005-60P2835IP20
Model selection, installation scope and the information needed for a B2B quotation.
Ask a project question →What supply voltage does SR005-60P2835IP20 need?
The model record lists 24V. Match the selected configuration to the driver output and confirm the complete branch load, wiring and control arrangement. Do not connect a low-voltage strip directly to mains power.
Can this model be cut to our furniture dimensions?
The listed cut interval is 6leds/100mm. Work to the permitted cut marks and allow space for the termination, cable exit and mounting detail. Finished assemblies need a length schedule; the cut interval does not mean every requested dimension can be supplied exactly.
Where does the listed IP20 protection apply?
This is the protection value shown for the catalogue source configuration. Check the intended exposure, cut ends, connections and mounting assembly separately. A reel rating does not automatically apply to a cut and reassembled lighting system.
Can it use the controller from our existing furniture range?
Compare the exact channel arrangement, common connection, voltage and controller output with this strip. RGB, RGBW and tunable-white configurations are not interchangeable. Demonstrate the required dimming and colour behaviour on the proposed controller before repeating the assembly.
Is this catalogue item a complete plug-and-play kit?
This page identifies the light source. A complete assembly also defines the profile, diffuser, driver, controls and harness. Send the fixture drawing and quantities to scope pre-cut lengths, prewired connections and packing by module.
What should we include when requesting this model for a project?
Quote SR005-60P2835IP20 and specify the selected colour, finished lengths, feed exits, quantity and unit. Add the application drawings, target market and required documents. Catalogue options and ranges need to be resolved into one identifiable order configuration.
