Under-Cabinet Task Lighting
Set the light line around the worktop and backsplash. Check the channel angle, diffuser, hand position and feed location on the cabinet drawing.
View the solution →

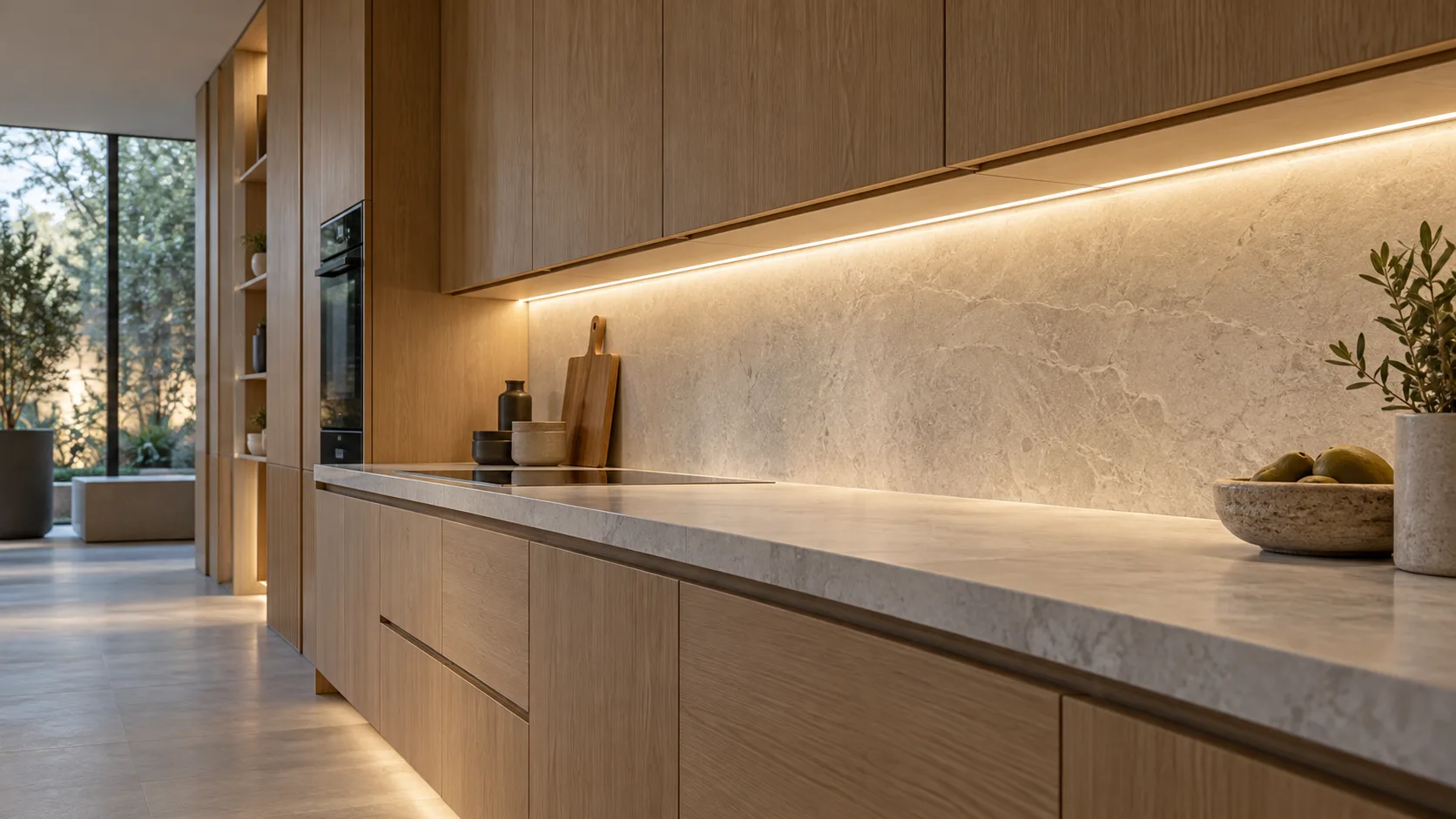

Kitchen & Cabinet Lighting Systems
Worktop light, concealed cable routes and coordinated sensors—planned as one cabinet assembly, with cut lengths and connectors identified for each module.
Discuss this assemblyAI-generated application illustration; not a completed BEXLIGHT project or a measured lighting result.
Resolve each detail.
Coordinate the assembly.
Worktop light, concealed cable routes and coordinated sensors—planned as one cabinet assembly, with cut lengths and connectors identified for each module.

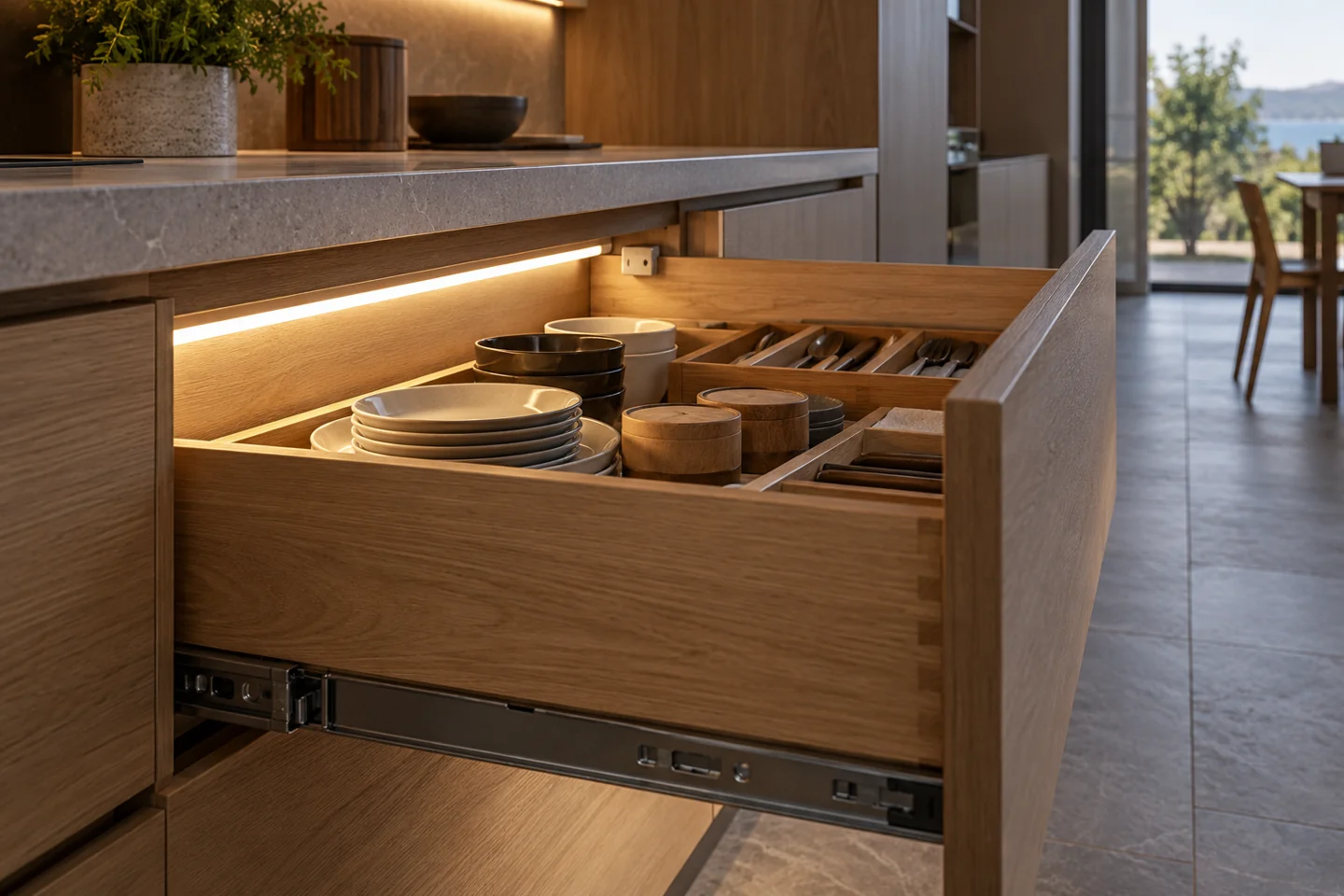

In-Drawer & Base Cabinet Sensors
Keep illumination out of the drawer runner envelope. Plan how the light switches, how the cable moves and how a replacement can be reached.
View the solution →

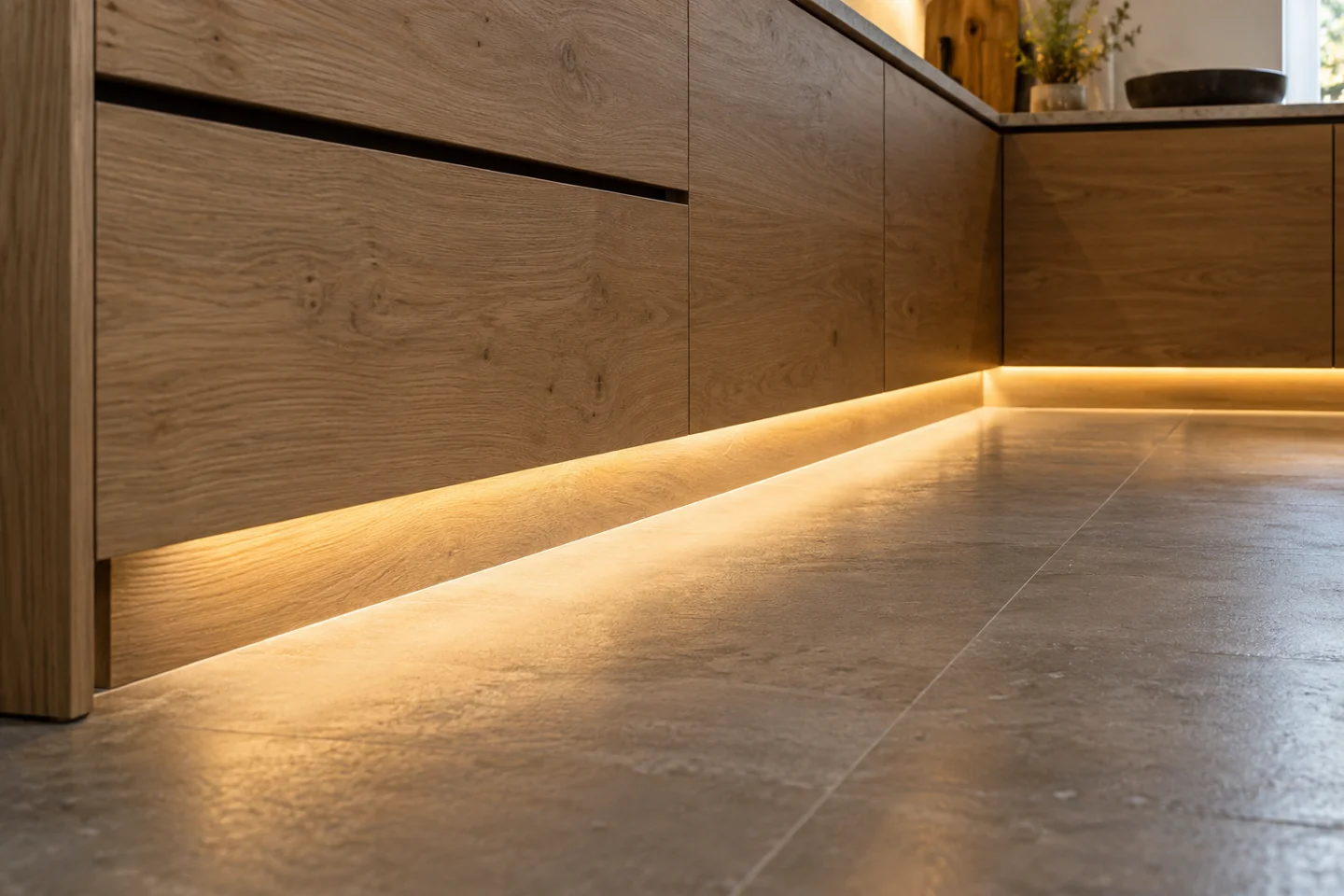

Toe-Kick & Plinth Accent Lighting
Treat the plinth, floor finish, corners and cleaning exposure as one installation detail.
View the solution →

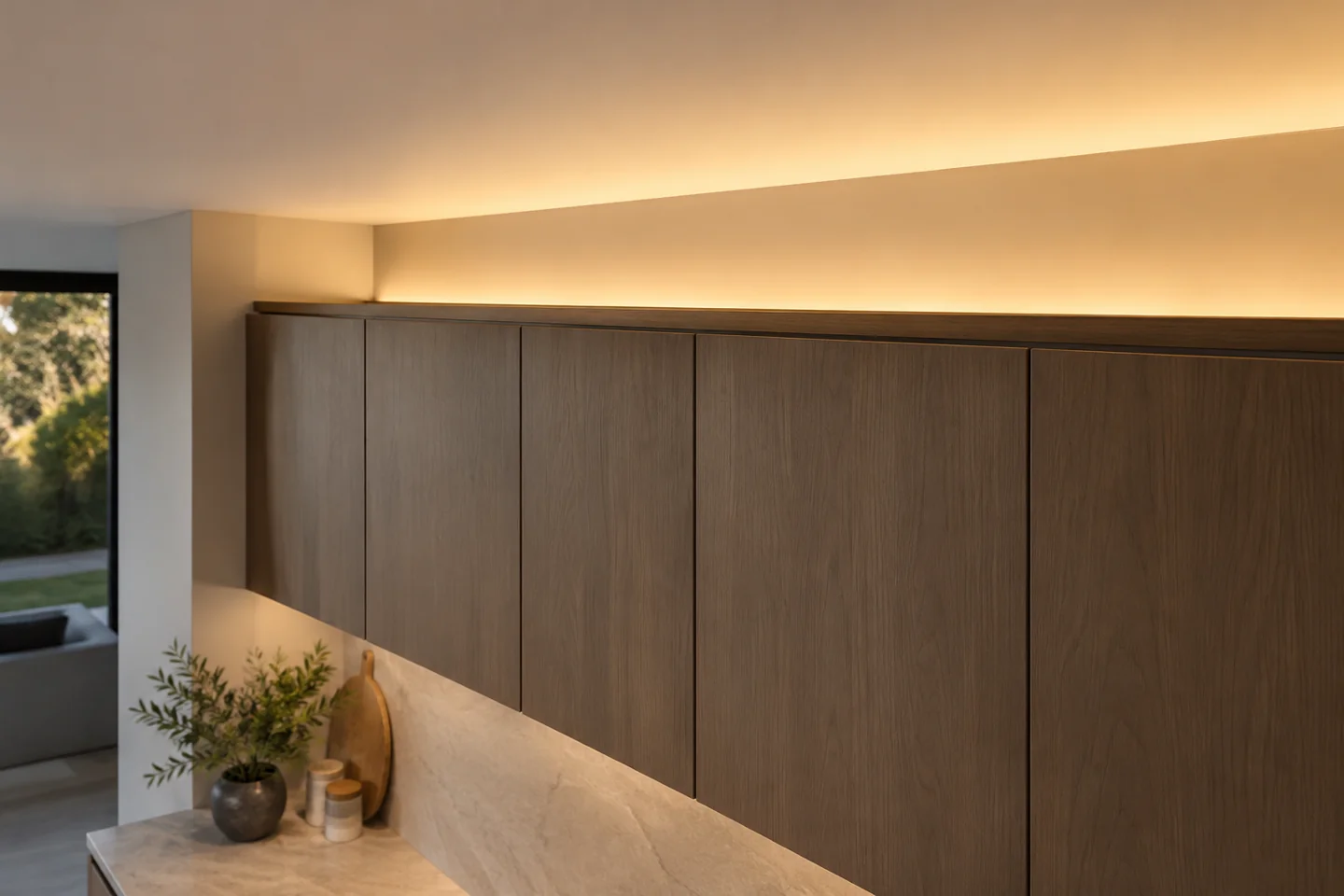

Over-Cabinet Ambient Lighting
Define the ceiling reveal and the access route for the driver and distribution leads.
View the solution →Supply scope
Build the order around cabinet variants: task-light sections, drawer or door sensing, plinth runs and over-cabinet ambient light. Record the usable length, lead exit and connection position for each module. Keep task and decorative circuits separate where they need different controls.
DESIGN DECISIONS
One coordinated specification, several different lighting details.
A kitchen & cabinet lighting systems brief should distinguish the visible effect from the assembly needed to achieve it. Start with the furniture sections and the way the space is used. Each detail below addresses its own installation, control and maintenance decisions; it should not inherit a specification simply because it sits in the same room.
| Decision | Required input | Review with the sample |
|---|---|---|
| Under-Cabinet Task Lighting | Dimension cabinet setback, front fascia and backsplash against the worktop. Mark where the user stands so that the proposed light does not place the task in the user’s shadow. | Review shadows, reflected source images and sensor behaviour with the intended worktop finish. Keep the approved mounting position and light assembly together in the drawing record. |
| In-Drawer & Base Cabinet Sensors | Show the drawer closed and fully extended, including runners, dividers and cable travel. Identify whether the light is fixed to the cabinet or moves with the drawer. | Cycle the loaded drawer through open, partly open and closed positions. Check detection, switch-off and cable movement before approving the mechanical and electrical assembly together. |
| Toe-Kick & Plinth Accent Lighting | Draw plinth runs, corners, end returns and removable panels. Identify cleaning exposure and the floor finish; reflected source images can become visible on polished surfaces. | Inspect light continuity and source visibility from seated and standing sightlines. Record each joint, service point and intended cleaning environment with the approved detail. |
| Over-Cabinet Ambient Lighting | Dimension the ceiling reveal, source setback and sightlines from adjoining spaces. Locate the driver compartment and every distribution feed before the top panel becomes inaccessible. | Check the ceiling effect, control behaviour and branch identification on a representative cabinet. Retain the final wiring schedule and accessible driver location with the approval. |
Different details.
Separate assembly decisions.
Use the scene images above with the corresponding installation notes below. A lighting detail should not inherit an unrelated wiring or mounting arrangement.
Under-Cabinet Task Lighting
Dimension cabinet setback, front fascia and backsplash against the worktop. Mark where the user stands so that the proposed light does not place the task in the user’s shadow.
Review this detail →In-Drawer & Base Cabinet Sensors
Show the drawer closed and fully extended, including runners, dividers and cable travel. Identify whether the light is fixed to the cabinet or moves with the drawer.
Review this detail →Toe-Kick & Plinth Accent Lighting
Draw plinth runs, corners, end returns and removable panels. Identify cleaning exposure and the floor finish; reflected source images can become visible on polished surfaces.
Review this detail →Over-Cabinet Ambient Lighting
Dimension the ceiling reveal, source setback and sightlines from adjoining spaces. Locate the driver compartment and every distribution feed before the top panel becomes inaccessible.
Review this detail →Real installation and component references.
Photographs support the adjacent selection decisions. The exact delivered components and their performance need their own drawings, documents and sample review.

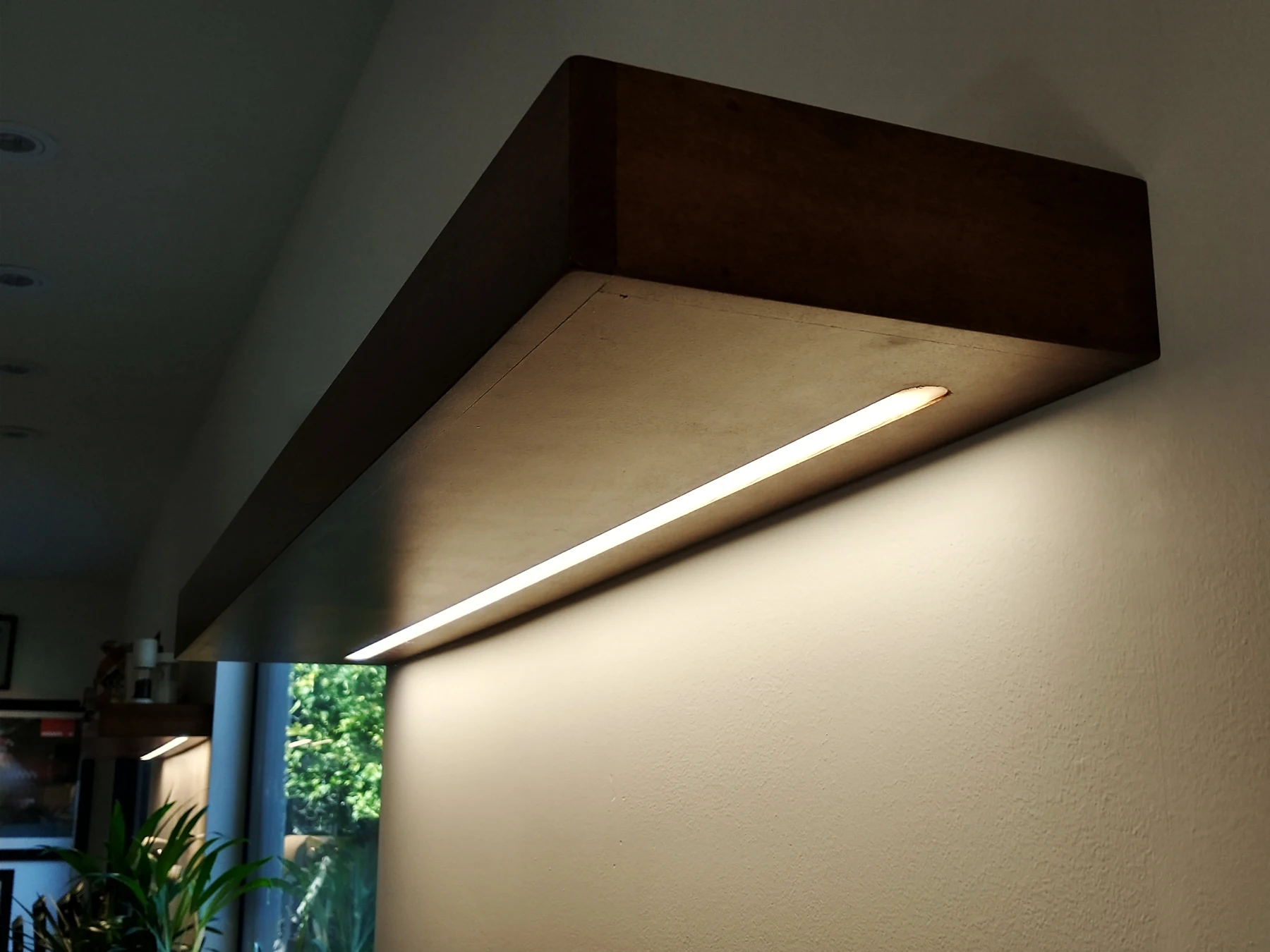

Source placement beneath a shelf
The photograph shows a completed under-shelf installation. Compare the source setback and reflective surfaces; it does not document the LED model or measured output.

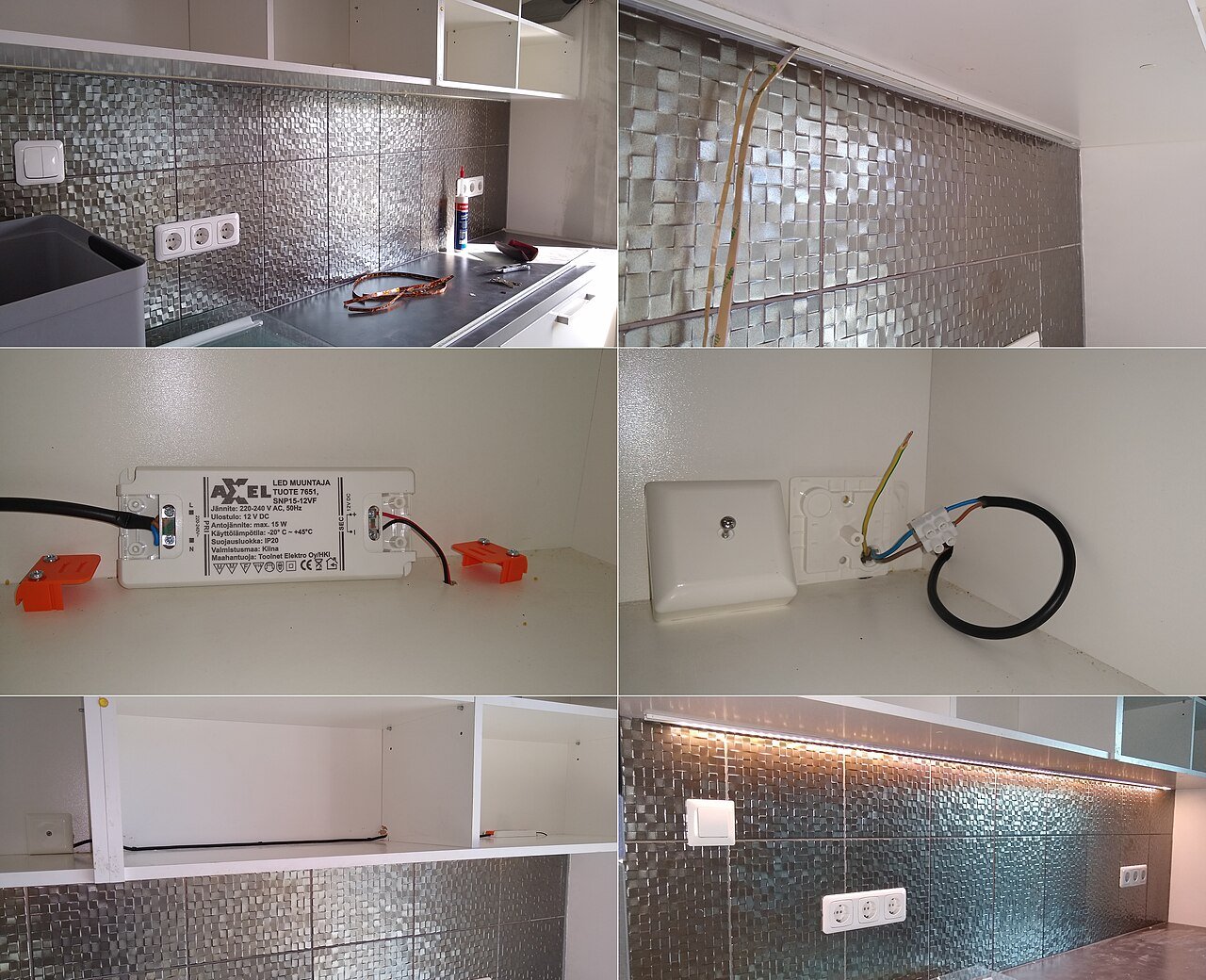

Installation and service access
This external installation sequence shows the light section and accessible supply position. It is a reference for coordinating access, not a wiring instruction for your selected kit.
Specify the interfaces,
not only the light source.
Use these selection questions in the assembly brief. Confirm availability, compatibility and performance for the proposed configuration.
Seamless COB LED Strip for Kitchen Cabinets
Review the visible line through the intended diffuser and recess depth.
Hand Sweep Sensor Cabinet Light Kit
Define sensor placement, switching distance and behaviour near reflective finishes.
45 Degree Corner Aluminum LED Profile
Check beam direction, fascia clearance and how the profile meets adjacent panels.
In-Drawer Motion Sensor LED Strip Light
Confirm detection coverage with the drawer open, closed and partly extended.
Automatic Door Touch Switch Cabinet Light
Agree the switching method and the position of the door actuator.
Ultra Slim Recessed Drawer LED Channel
Check channel depth, runner clearance and the cable exit before machining.
Toe-Kick LED Lighting Strip Kit
Specify the lit sections, corner transitions and feed schedule by cabinet run.
Waterproof IP54 Kitchen Baseboard Light
If this description appears in the brief, verify the actual IP54-rated parts and the completed joint detail; do not read it as an immersion rating.
Over-Cabinet High Lux Ambient LED Strip
Agree the measurement plane and target illuminance; the phrase alone is not a lux specification.
DuPont Quick-Connect Distribution Box
Confirm the exact mating series, pinout, current rating and polarity; connector names do not establish compatibility.
Mini-AMP Low Voltage Cabinet Connector
Identify the matching housings, contacts and cable size for the selected system.
Ultra-Slim Inline Cabinet Driver
Check load, enclosure dimensions, ventilation and replacement access.

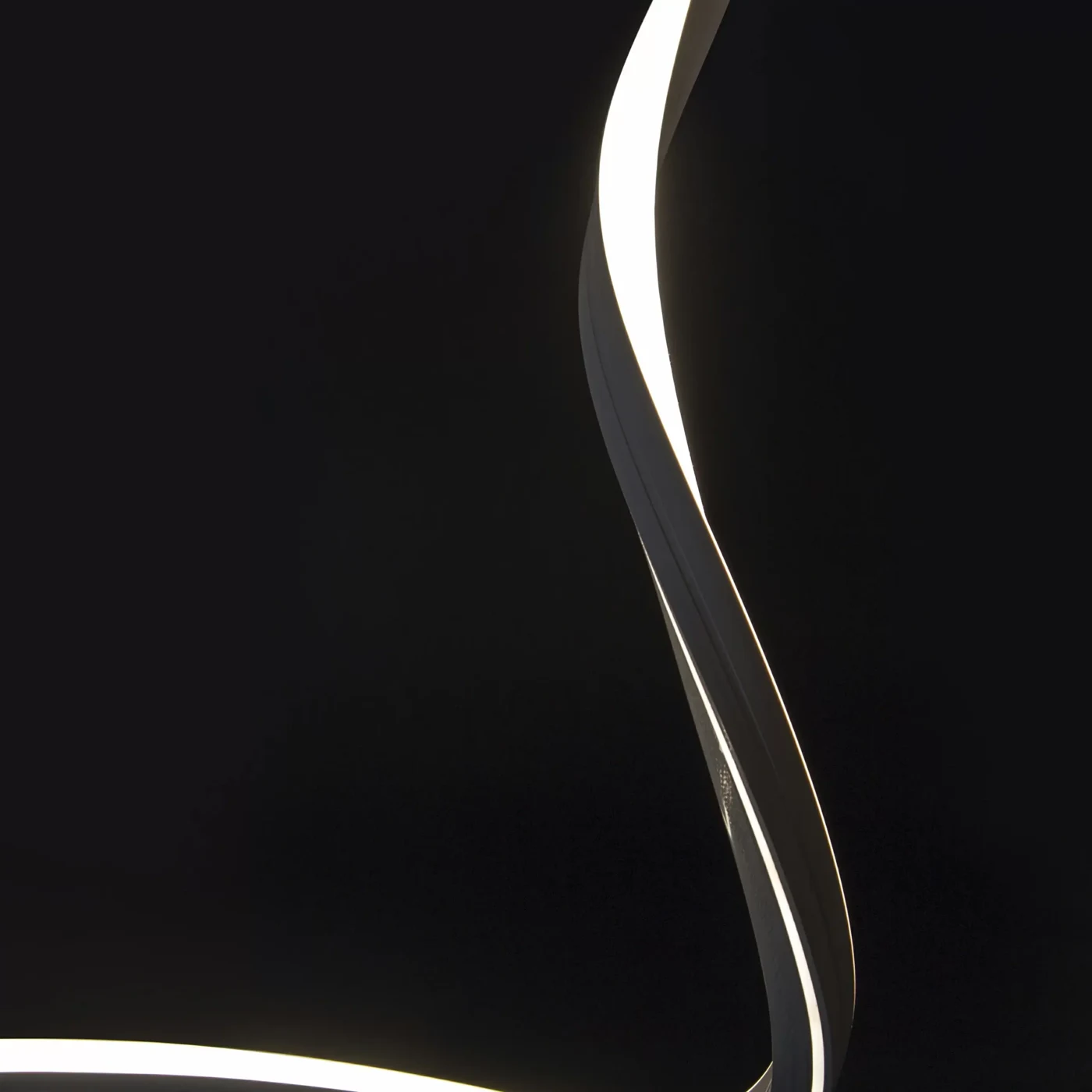

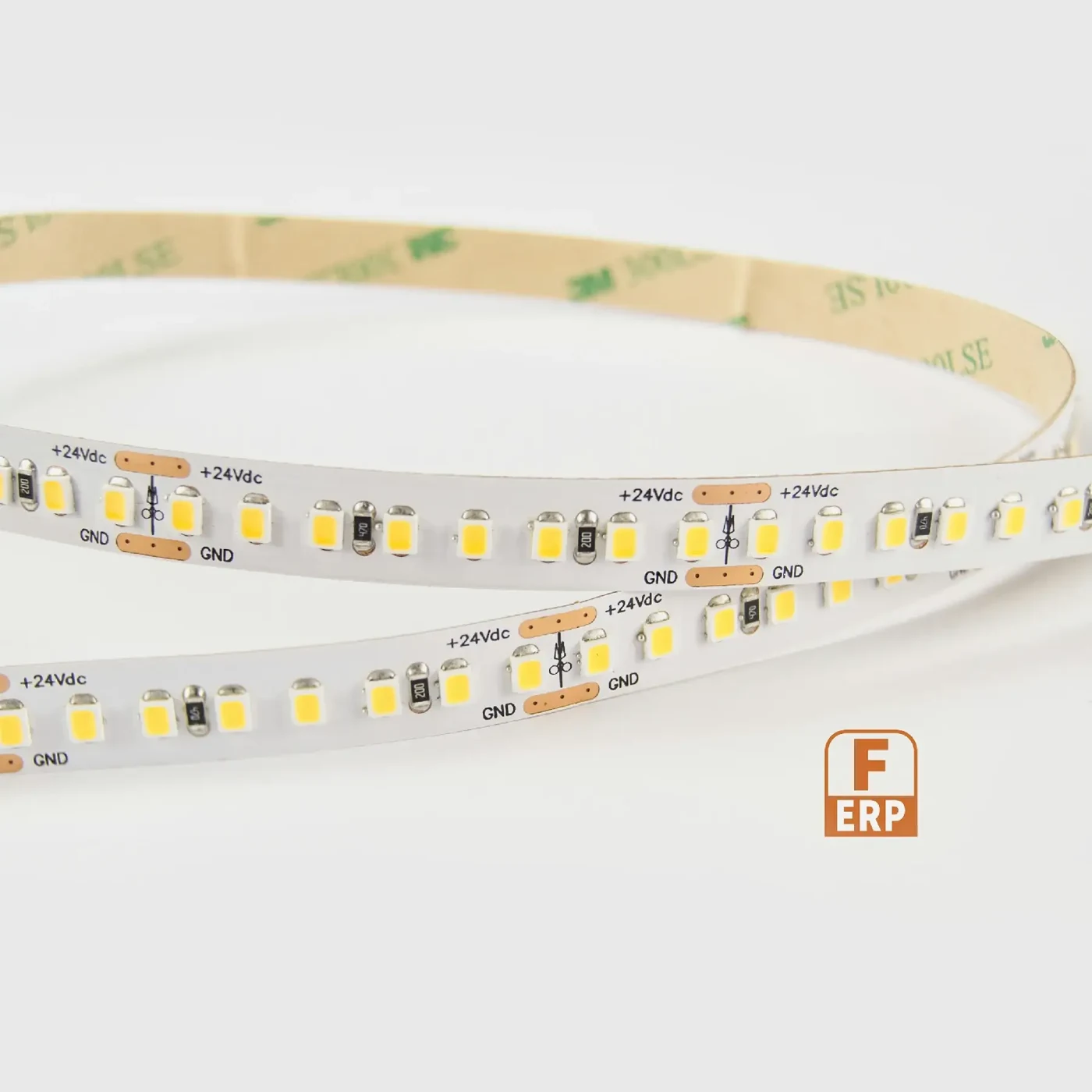

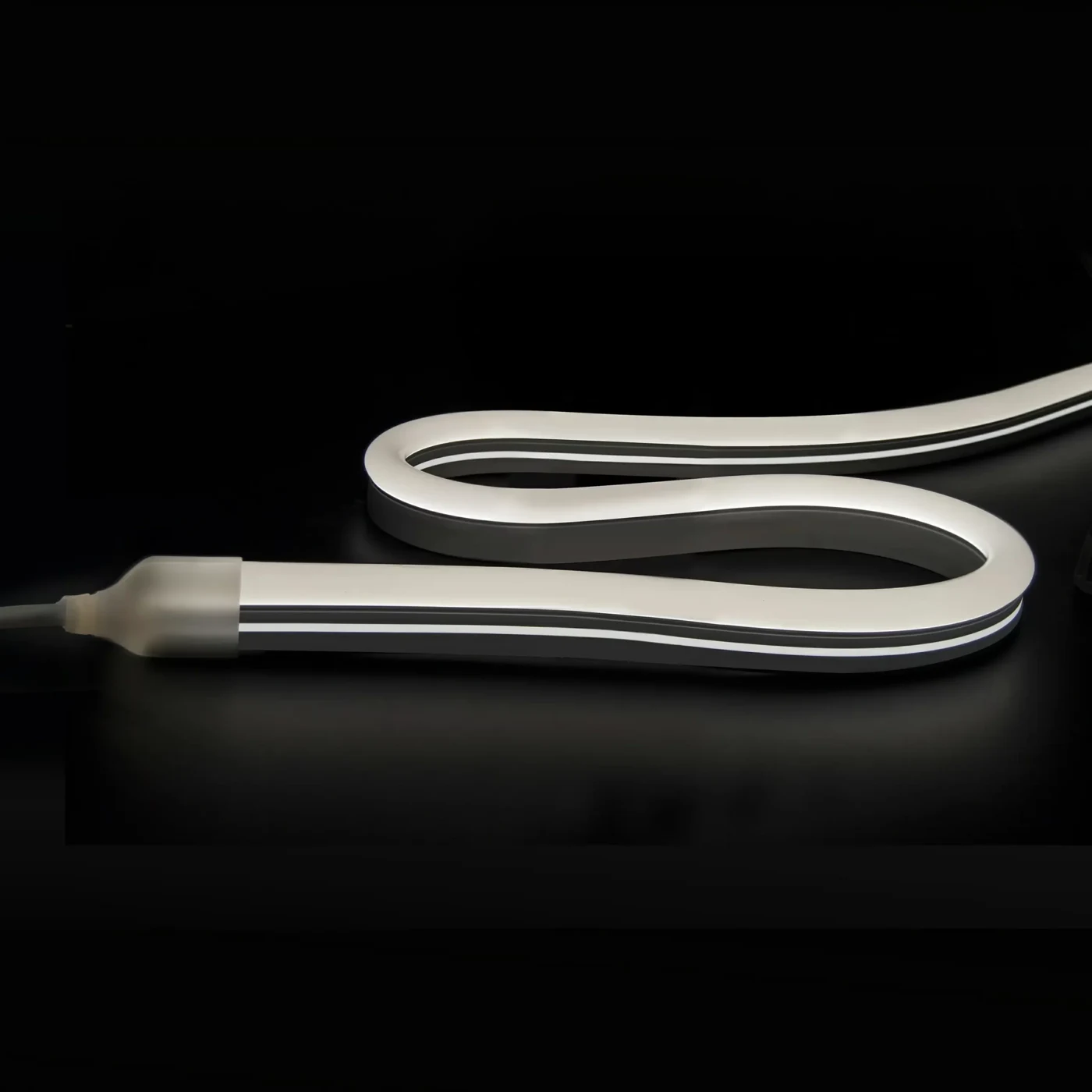

Light sources &
assembly scope.
Compare the source with the fixture dimensions and intended light effect. A complete supply schedule also identifies the profile, controls, connectors and the work included in the assembly.
Turn the detail
into an orderable brief.
State the quantity basis and open decisions. A labelled assembly schedule keeps design, purchasing and installation working from the same reference.
- Furniture sections and a dated drawing revision
- Named sub-applications, quantities and installation sequence
- Selected source, profile, diffuser and control interfaces
- Harness lengths, service points and packing by module
- Sample review criteria and documents for the target market
FREQUENTLY ASKED QUESTIONS
Kitchen & Cabinet Lighting Systems FAQ
Practical answers for the furniture drawing, sample review and purchasing brief.
Ask a project question →Can task, drawer and toe-kick lighting use one power supply?
They may share a supply only after the loads, voltage, wiring and control behaviour have been checked together. List each branch and its length. Keep independently switched drawers separate from a continuously lit plinth in the wiring schedule.
What dimensions are needed before the cabinet panels are machined?
Send the panel thickness, usable groove depth, fascia setback and cable exits. The channel, diffuser, connector and fixing method all need space. Confirm the selected cross-section on the joinery drawing before cutting the panels.
Will a COB strip remove reflections from a glossy worktop?
A continuous source can reduce visible LED points, but it will not remove reflections caused by source position and surface finish. Compare setback, channel angle and diffuser on a section of the actual cabinet and worktop.
How should kitchen sensor positions be specified?
Mark the hand approach, door travel and potential obstructions. Identify the sensor supply and output interface. Review steam, cleaning and unintended activation around the selected sensor, rather than treating every cabinet sensor as interchangeable.
CONTINUE THE SPECIFICATION
Guides for the
next design decision.
Use the wider furniture brief to coordinate this lighting detail with adjacent modules and project teams.
Keep the related
decisions connected.

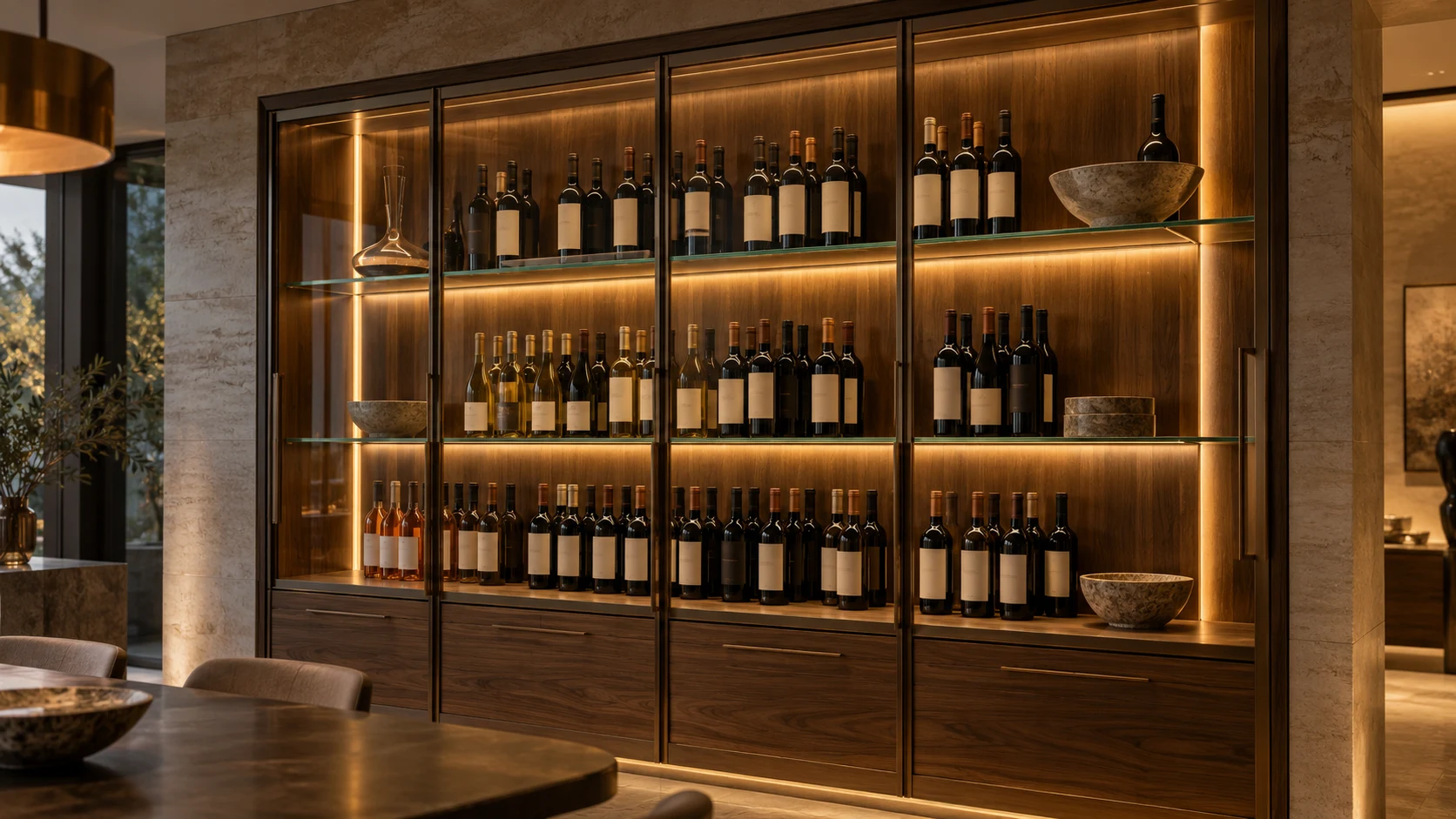

Wine Cabinet & Cellar Lighting
Quiet, warm light for bottle displays and glazed cabinets. Resolve shelf edges, reflections, cable visibility and thermal conditions before approving the assembly.
View the solution →

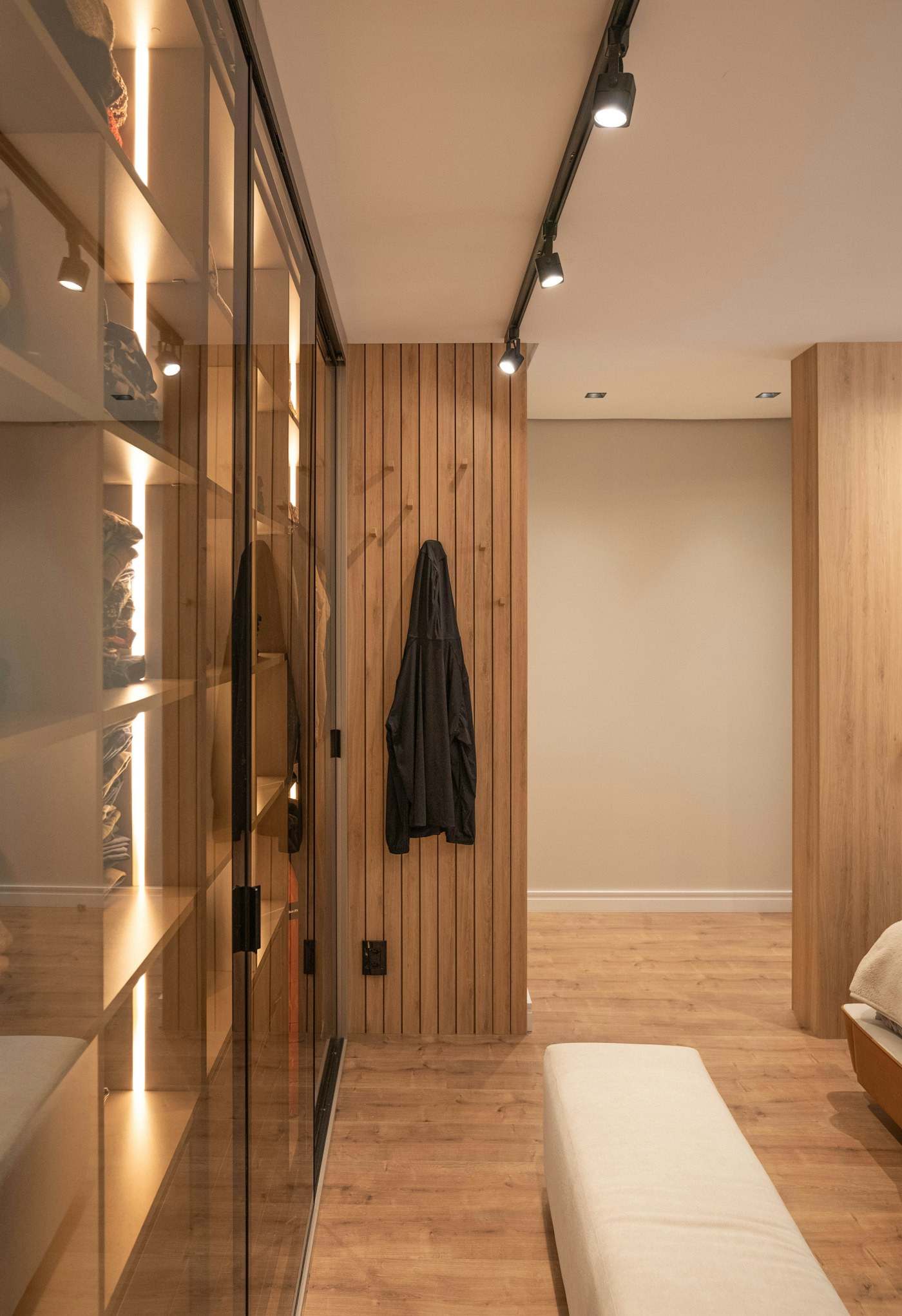

Wardrobe & Walk-In Closet Systems
