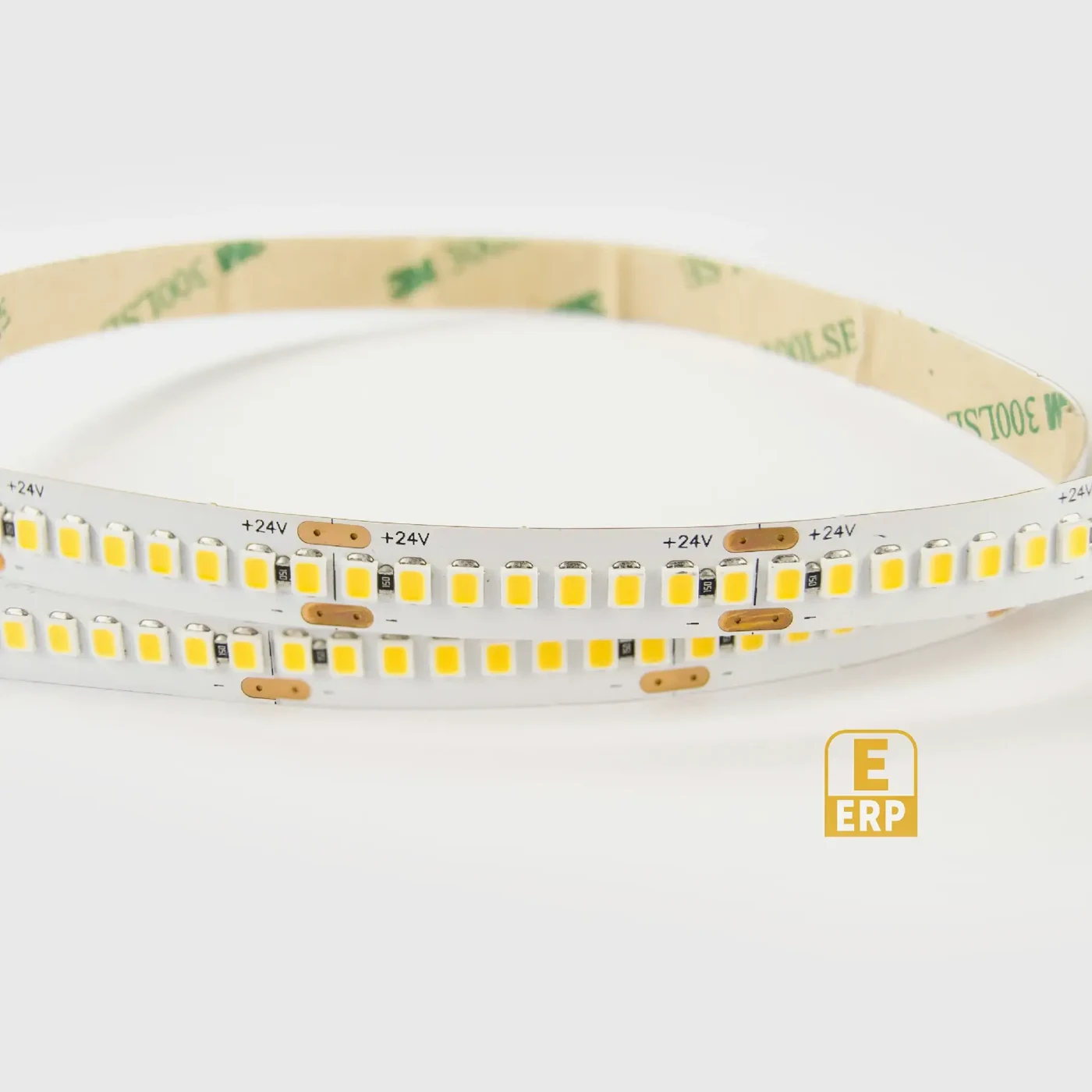

2835 High Efficiency LED Strip
Model SR005-240P2835IP20-ER90
An SMD LED strip for task, accent and display lighting. Choose the white-light or colour configuration and check its fit in your selected profile.
- Supply voltage
- 24V
- Dimensions
- 10*5000mm
- Cut interval
- 25mm
- Protection
- IP20
- Colour temperature options
- 2700, 3000, 4000, 6500
- CRI options
- 90Ra
For fixture development, project supply and repeat B2B orders. Include the quantity and intended configuration in your enquiry.
Build the specification around the assembly.
SMD LED strips serve task, accent and display lighting where the PCB dimensions, LED spacing and optical assembly can be matched to the fixture. Select against the complete detail rather than comparing a single catalogue figure.
Plan the complete lighting assembly.
Coordinate this model with the selected profile, diffuser, driver, sensors and quick-connect harness. Discuss Pre-Cut Custom Lengths and Custom Assembly & Kitting against the drawings; a catalogue strip alone is not a ready-to-install kit.
MODEL DATA
The details
that define the model.
Match the selected configuration to your order and fixture drawing. Options and catalogue ranges describe available configurations rather than simultaneous ratings.
Model reference
SR005-240P2835IP20-ER90
| Parameter | Value / options |
|---|---|
| Luminous output | To confirm |
| Efficacy | 150 lm/W |
| Power per metre | 19.2 W/m |
| LEDs per metre | 240 |
| Supply voltage | 24V |
| Dimensions | 10*5000mm |
| Cut interval | 25mm |
| Minimum bend diameter | >60mm |
| Copper foil | 3OZ |
| Protection | IP20 |
| Colour temperature options | 2700, 3000, 4000, 6500 |
| CRI options | 90Ra |
| LED type | 2835 |
Full catalogue record
Retained for reference; confirm options for the supplied configuration.
| Power(W/m) | 14.5-19.2 |
|---|---|
| Voltage | 24V |
| Lumen output | 150LM/W |
| CCT | 2700, 3000, 4000, 6500 |
| CRI | 90Ra |
| LED Type | 2835 |
| LEDs/m | 240LEDs/m |
| Dimension | 10*5000mm |
| Cut unit | 25mm |
| Bend Diameter | >60mm |
| Copper Foil | 3OZ |
| IP Rating | IP20 |
| Warranty | 3-5 years |
