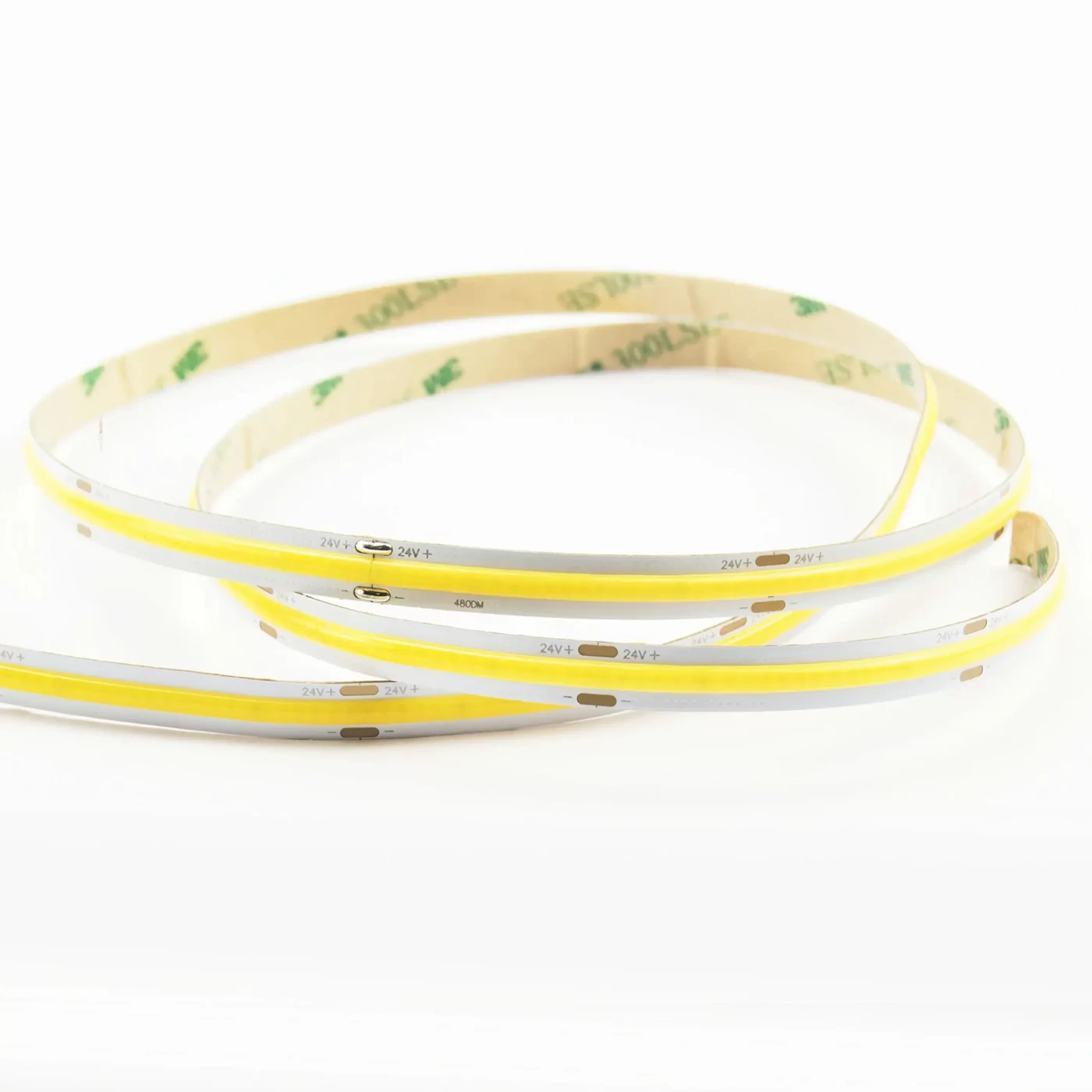

COB LED Strip
Model SR005-320PCOBIP20
A COB LED strip for continuous light lines in cabinetry, shelving and interior details. Compare the visible light effect with your chosen profile and diffuser.
- Supply voltage
- 24V
- Dimensions
- 8*5000mm
- Cut interval
- 50mm
- Protection
- IP20
- Colour temperature options
- 2700, 3000, 4000, 6500
- CRI options
- 80Ra, 90Ra, 95Ra
For fixture development, project supply and repeat B2B orders. Include the quantity and intended configuration in your enquiry.
A continuous line, resolved in the fixture.
COB LED strip lighting is a starting point for a closely viewed light line in furniture and display details. The final appearance also depends on mounting depth, profile, diffuser and the surface being illuminated.
Plan the complete lighting assembly.
Coordinate this model with the selected profile, diffuser, driver, sensors and quick-connect harness. Discuss Pre-Cut Custom Lengths and Custom Assembly & Kitting against the drawings; a catalogue strip alone is not a ready-to-install kit.
MODEL DATA
The details
that define the model.
Match the selected configuration to your order and fixture drawing. Options and catalogue ranges describe available configurations rather than simultaneous ratings.
Model reference
SR005-320PCOBIP20
| Parameter | Value / options |
|---|---|
| Luminous output | To confirm |
| Power per metre | 8 W/m |
| LEDs per metre | 320 |
| Supply voltage | 24V |
| Dimensions | 8*5000mm |
| Cut interval | 50mm |
| Minimum bend diameter | >60mm |
| Copper foil | 2OZ |
| Protection | IP20 |
| Colour temperature options | 2700, 3000, 4000, 6500 |
| CRI options | 80Ra, 90Ra, 95Ra |
| LED type | COB |
Configuration values requiring confirmation
Lumen output: title 800; source field 描述：1000 lm/m.
Full catalogue record
Retained for reference; confirm options for the supplied configuration.
| Power(W/m) | 4.9-9.6 |
|---|---|
| Voltage | 24V |
| Lumen output | 600-999 |
| CCT | 2700, 3000, 4000, 6500 |
| CRI | 80Ra, 90Ra, 95Ra |
| LED Type | COB |
| LEDs/m | >240 |
| Dimension | 8*5000mm |
| Cut unit | 50mm |
| Bend Diameter | >60mm |
| Copper Foil | 2OZ |
| IP Rating | IP20 |
| Warranty | 3-5 years |
Check the fit.
Approve the result.
Use the model information alongside your fixture and installation requirements. The sample should answer the questions that a catalogue image cannot.
White light & matching
Agree the colour temperature, colour rendering requirement and batch expectations. Use the same sample assembly and comparison conditions for approval.
Heat & connections
Review the mounting surface, section lengths and cable paths together. Keep joints and the driver accessible for assembly checks and maintenance.
Plan this source
in the right detail.
COB construction is relevant to closely viewed light lines. The profile depth, diffuser and viewing distance still determine the finished appearance. These are application planning routes, subject to configuration and sample review.
Under-Cabinet Task Lighting
Set the light line around the worktop and backsplash. Check the channel angle, diffuser, hand position and feed location on the cabinet drawing.
View the solution →
Micro-Recessed Glass Shelf Edge
Keep the light source discreet around glass thickness, shelf supports and the cabinet front.
View the solution →
Under-Shelf Recessed Joinery Lighting
Coordinate machining, light direction and the shelf support before the section is released for cutting.
View the solution →TECHNICAL SUPPORT
Put the right information
behind the order.
Need a model datasheet, dimensional drawing or wiring information? Send the model reference and the configuration you are considering so the appropriate documents can be identified.
For a quotation, include the application, quantity and unit, section lengths, colour requirement, target market and any fixture drawings.
Request documents or discuss this modelFREQUENTLY ASKED QUESTIONS
Questions about SR005-320PCOBIP20
Model selection, installation scope and the information needed for a B2B quotation.
Ask a project question →What supply voltage does SR005-320PCOBIP20 need?
The model record lists 24V. Match the selected configuration to the driver output and confirm the complete branch load, wiring and control arrangement. Do not connect a low-voltage strip directly to mains power.
Can this model be cut to our furniture dimensions?
The listed cut interval is 50mm. Work to the permitted cut marks and allow space for the termination, cable exit and mounting detail. Finished assemblies need a length schedule; the cut interval does not mean every requested dimension can be supplied exactly.
Where does the listed IP20 protection apply?
This is the protection value shown for the catalogue source configuration. Check the intended exposure, cut ends, connections and mounting assembly separately. A reel rating does not automatically apply to a cut and reassembled lighting system.
Will the light line look continuous in a shallow cabinet channel?
COB construction is intended for a closely viewed light line, but the final appearance depends on channel depth, diffuser, source setback and viewing angle. Review this model in the actual profile and finish before approving a shallow or reflective detail.
Is this catalogue item a complete plug-and-play kit?
This page identifies the light source. A complete assembly also defines the profile, diffuser, driver, controls and harness. Send the fixture drawing and quantities to scope pre-cut lengths, prewired connections and packing by module.
What should we include when requesting this model for a project?
Quote SR005-320PCOBIP20 and specify the selected colour, finished lengths, feed exits, quantity and unit. Add the application drawings, target market and required documents. Catalogue options and ranges need to be resolved into one identifiable order configuration.
Compare within
the range.
Check the individual configuration and physical dimensions before substituting a model.
