Specify jewellery-case lighting with actual merchandise, glazing and viewing tests. Keep colour evidence, reflections and repeat-order configuration distinct.
A showcase fabricator sourcing jewellery lighting has to turn a retailer’s visual expectations into a repeatable case assembly. Metal finishes, stone colours, display fabrics and glass all influence that decision, while the available mounting space can be tightly constrained. When sourcing jewellery showcase lighting modules, compare exact configurations within the case and preserve the accepted combination for future production. A useful enquiry therefore connects the merchandise approval method to case drawings, lighting positions and delivery scope. This gives purchasing an evidence-based comparison without relying on a single colour-rendering claim.

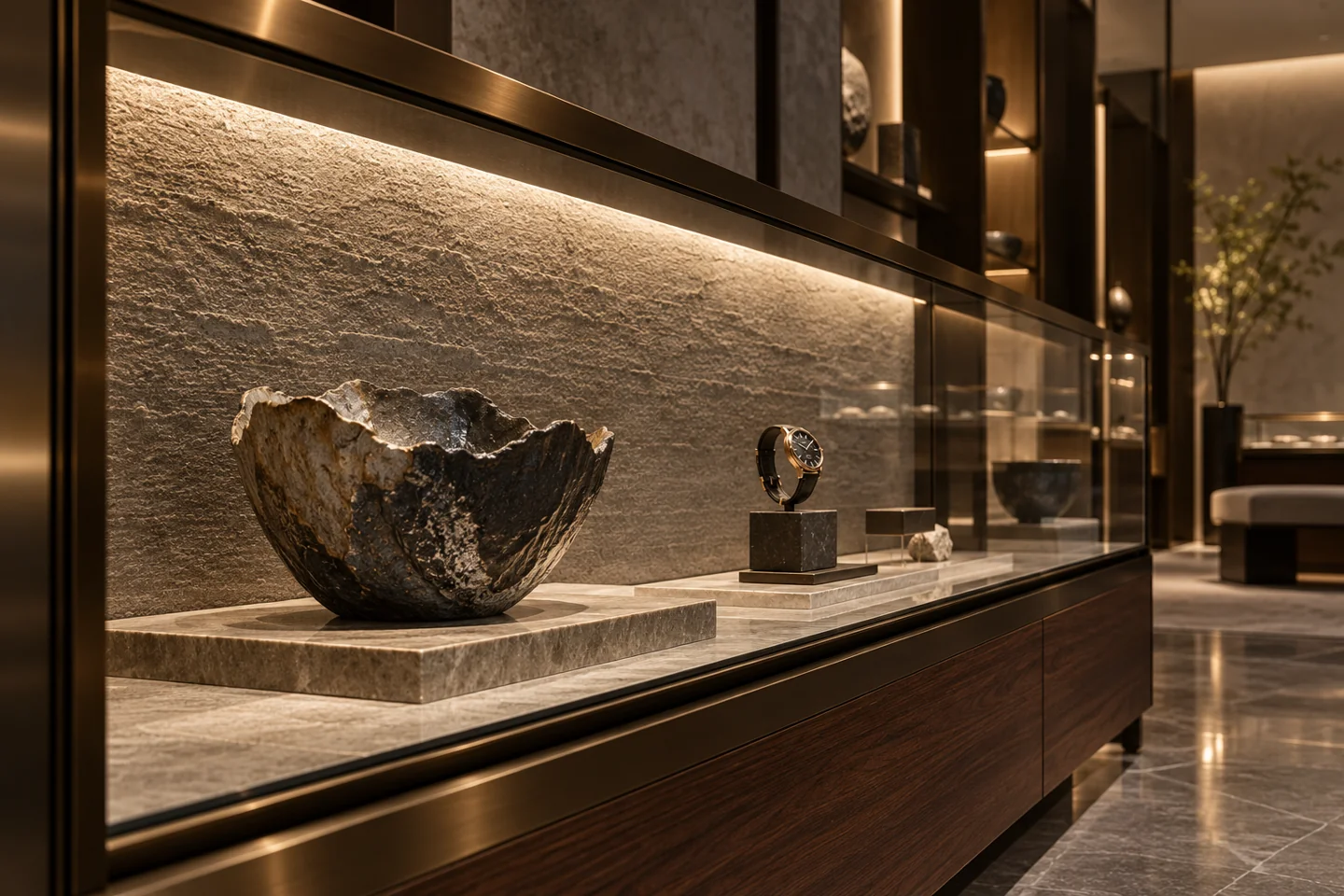

Position glass showcase strip lighting in relation to the case frame, glass joints and the visitor’s approach. A line that is hidden when looking down may appear reflected from a lower angle. Include the actual trim and display risers so the review can distinguish useful merchandise illumination from light escaping onto the glass or surrounding joinery.
Side-mounted sections can reach displays that are shaded by upper furniture elements, but their position also changes the highlights seen on metal and stones. Check the intended merchandise arrangement at several heights. Identify left and right assemblies separately when the mounting, lead direction or visible case frame prevents them from being interchangeable.
A feature niche or raised central display may need a configuration distinct from the surrounding case. Define the item positions and backdrop rather than extending a perimeter-light specification by default. Keep any local adjustment or separate circuit visible in the order schedule so the retailer can reproduce the approved presentation after merchandise changes.
Each view addresses a named lighting detail. Illustrations show the design intent; select the actual components against the drawing and a representative sample.
Select the optic with the source and working distance; a nominal beam angle does not establish the final distribution.
Explore this installation detail →Photographs support the adjacent selection decisions. The exact delivered components and their performance need their own drawings, documents and sample review.

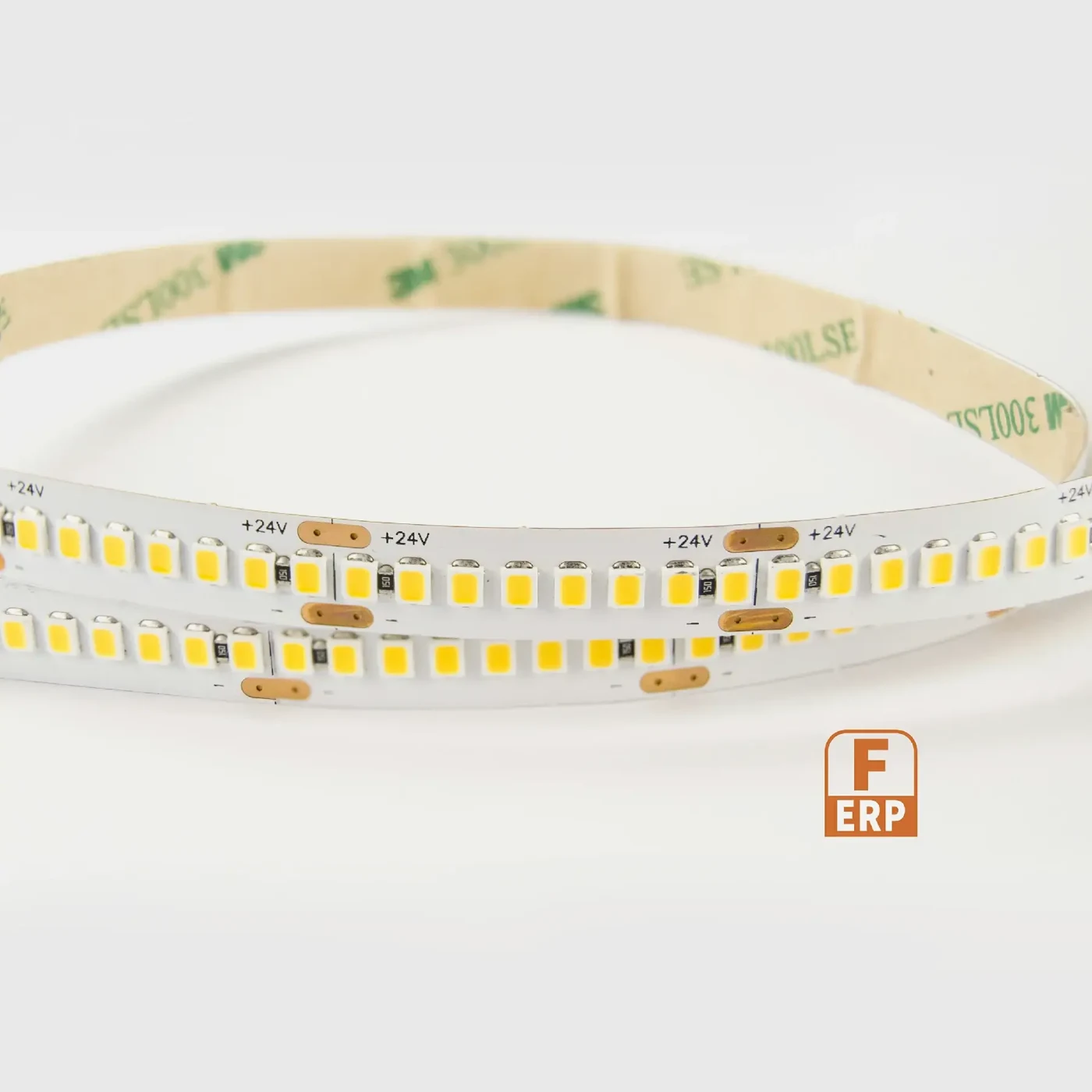

A close view of an LED strip helps distinguish the board, packages and electrical sections. Use the selected model drawing for its dimensions and cutting interval.
Compare the light line, assembly envelope and control requirements together. The routes below are starting points for a specification discussion.
Consider SMD candidates using exact model reports and a representative merchandise set. Evaluate them with the selected cover or optics so the comparison accounts for the case assembly that will be supplied, including glass and finishes.
An LED package number or general rendering index does not predict the preferred appearance of every metal or stone in a showcase.
Explore SMD models →
Consider COB where compact framing makes source images difficult to conceal. Compare its effect on the merchandise and reflected light lines in the finished case rather than assuming that a continuous emitter is the preferred presentation.
Check exact spectral and colour data alongside the sample. Construction type alone does not establish colour quality or a particular sparkle effect.
Explore COB models →Use the fixture drawing, component documentation and a representative assembly to turn the visual brief into a repeatable specification.
Ask the retailer to select the metal finishes, stones, packaging and background materials that matter to the display. Record which combinations need approval and who has authority to approve them. Avoid making one sample ring stand for the entire product range. This is a proposed evaluation method, not a claimed BEXLIGHT jewellery project.
Request the spectral and colour-rendering information for the exact candidate configuration. Keep report identity attached to the sample. Evaluate the merchandise under a controlled scene, then under the intended surrounding store light. Do not describe a source as universally best for diamonds, gold or gems without a defined comparison and evidence.
Observe the display from the intended customer positions with the installed glass, backing and interior finishes. Identify direct and reflected views of the source. Adjust mounting geometry and shielding in the mock-up before specifying a different power level. Keep the result separate from the merchandise colour judgement.
Record active section lengths, profile or mounting components, lead exits and equipment access. Define how a failed section can be replaced without disturbing the merchandise structure. For repeat cases, preserve the approved sample identity and request matching evidence for subsequent supply rather than relying on a generic colour label.
Provide case drawings, glazing details, representative merchandise and the approval scene. Include case quantities and whether the source is supplied as reels or assembled sections. No specific rendering result is promised before the relevant data and sample are reviewed.
| Decision | What to check | Record or boundary |
|---|---|---|
| Colour presentation | Retailer-selected merchandise set | Signed visual comparison |
| Reflected glare | Installed glazing and customer eye positions | Case mock-up |
| Repeatability | Exact source and assembly identity | Controlled case specification |
FREQUENTLY ASKED QUESTIONS
Selection, integration and repeat-supply questions for this application.
Ask a project question →That is a merchandise approval decision rather than a rule based on the source family. Compare representative pieces with the retailer under the intended case scene and surrounding store light. Record whether one configuration is accepted for the whole range or whether named display categories require separate cases or controlled lighting zones.
For a jewellery lighting comparison, use the same merchandise arrangement, glass, background and viewing conditions, and identify each sample configuration. Record any differences in operating input or optics rather than hiding them in the comparison. Review the associated reports for sample identity, then let the authorised retailer representative assess the merchandise presentation under the agreed conditions.
Review the complete mounting and termination envelope with the case designer before changing the source. Possible changes to the frame, optical detail or section layout should be evaluated as new assemblies. A source that fits inside the opening may still leave no practical space for its connection or replacement after the glass is installed.
Keep the source configuration, optics, finishes and accepted merchandise scene together in the jewellery display case specification. Ask for traceable supply references and an agreed approach to reviewing later changes. Where cases will sit adjacent to earlier units, include a comparison procedure that reflects that installation rather than relying only on matching catalogue descriptions.
Share the fixture or route drawing, quantities, target market and the decisions still open. Include your company and whether you are preparing a sample, a project or repeat production.
